From Pixels to Payload

🎯 Goal

This is a personal learning project where I set out to explore how binary payloads can be stealthily hidden inside image files and executed entirely from memory without writing anything obvious to disk or leaving behind a large forensic footprint.

The main idea was to combine steganography with in-memory execution, eventually building a custom DLL that can act as a stealth loader using DLL hijacking. The endgame? Code execution inside a trusted process, no UAC prompts, no file drops or at least that’s the theory.

To start, I built out a Python prototype to test:

LSB steganography to embed payloads into PNGs
Base64 encoding/decoding for cleaner transport
In-memory shellcode execution using ctypes (just for testing)

Right now, both the embedding and extraction logic live in Python, but the plan is to eventually rebuild the extractor in C++ to integrate it with a real DLL hijack scenario.

Even if some parts don’t fully hit the stealth or reliability I want, that’s fine the goal is to learn by building, testing, and breaking stuff. It’s about understanding the trade-offs, not chasing a perfect PoC.

🧊 LSB Steganography What & Why?

LSB (Least Significant Bit) steganography is one of the simplest ways to hide data in images.

Each pixel in a standard RGB image holds 3 bytes one for red, green, and blue. By flipping just the last bit of one of these values, you can hide binary data without making visible changes to the image.

Original Red: 10110010 → 178 Modified Red: 10110011 → 179

That’s only a 1-point change in value, which the human eye won’t notice but it’s enough to store a single bit. Do this across thousands of pixels and you can stash a full payload in plain sight.

I stuck with the lowest bit in the red channel only for simplicity and minimal visual noise. You can push it further (2–3 bits per channel), but I wanted to keep it subtle.

💡 Why LSB + Memory Execution?

I wanted to test whether it’s possible to hide a payload inside an image and then execute it without ever writing anything to disk. That’s where LSB steganography and in-memory execution come in.

LSB lets me embed data inside an image without changing how it looks.
In-memory execution avoids writing an EXE or DLL to disk – the payload runs directly from memory.

This combo sounded interesting, so I set out to see if it would actually work in practice, starting with simple payloads and expanding from there.

📦 Components

embed.py → Encodes a shellcode or any binary payload into the LSBs of a PNG image
extract.py → Recovers the payload, decodes it, and executes it in memory

⚙️ Technical Workflow

Embedding Phase

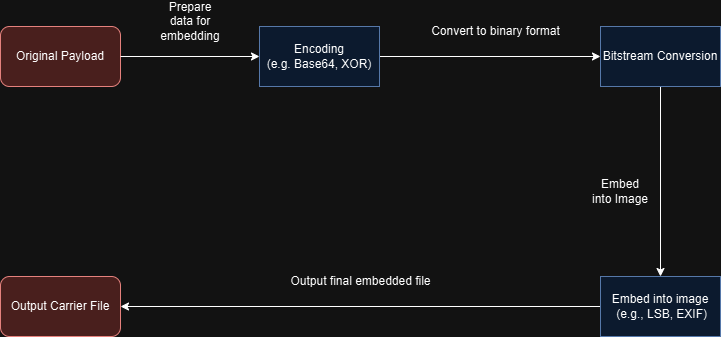

Embedding Flowchart Extraction Phase

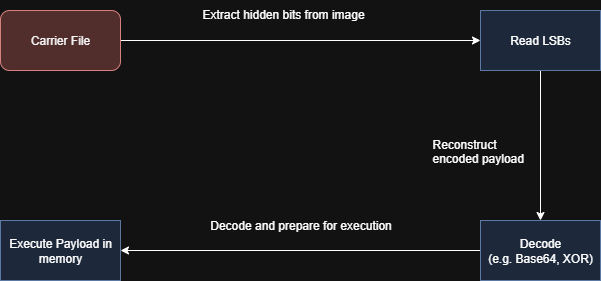

Extraction Flowchart

🔐 Tested Payloads

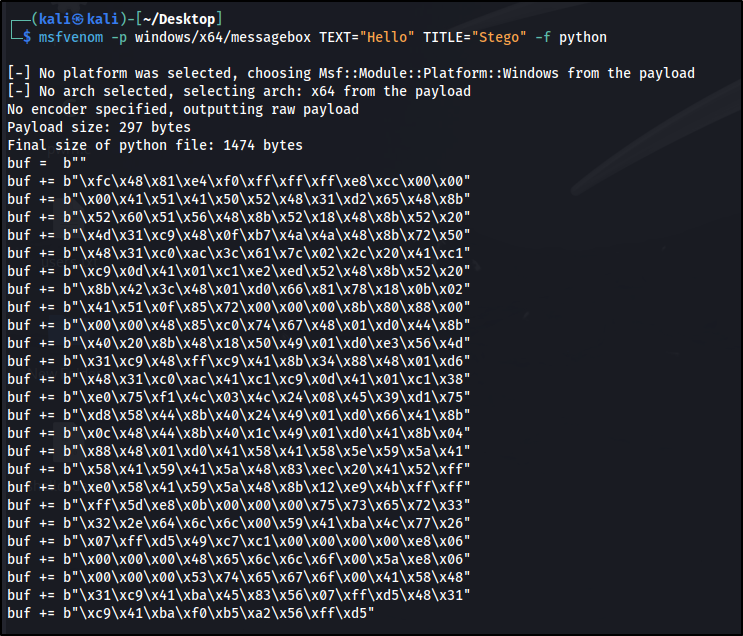

I used msfvenom to generate a simple 64-bit Windows MessageBox payload for testing:

msfvenom -p windows/x64/messagebox TEXT="Hello" TITLE="Stego" -f python

payload

🧪 Output Example

Here’s what it looks like after encoding:

Text embedded.
Encoded base64 payload: /EiB5PD////ozAAAAEFRQVBSSDHSZUiLU........
Byte length: 396

Then, after extraction:

[+] Extracted (Base64): b'/EiB5PD////ozAAAAEFRQVBSSDHSZUiLUmBRVkiLUhhIi1IgTTHJSA.......'
[+] Decoded Payload: b'\xfcH\x81\xe4\xf0\xff\xff\xff\xe8\xcc\x00\x00\x00AQAPRH1\xd2eH\x8bR`QVH\x8bR\x18H\x8bR M1\xc9H\x0f\xb7JJH\x8brPH1\xc0\xac<a|\x02, A\xc1\xc9\rA\x01\xc1\xe2\xedRH\x8bR \x8bB<H\x01\xd0f\x81x\x18\x0b\x02AQ\x0f\x85r\x00\x00\x00\x8b\x80\x88\...........'
[DEBUG] Allocated pointer: 0x21ff5500000

Executing the extractor pops our messagebox.

messagebox

💻 C++ Rebuild & Shellcode Execution

While I had some basic experience with game hacking, which gave me a foundation in memory allocation and raw pointer manipulation, byte-level data, and bitwise operations in C++ was new territory for me.

To deepen my understanding, I decided to rewrite my Python extractor in C++. This gave me hands-on experience with several key concepts:

Reading raw PNG pixel data using the lodepng library
Extracting and converting bitstreams into usable bytes
Validating custom STEG markers and length headers for embedded data
Implementing manual Base64 decoding routines
Executing in-memory shellcode via VirtualAlloc, memcpy, and function pointers

Rebuilding everything in C++ forced me to think more deeply about how low-level execution works much more than Python ever did. Debugging the process taught me to account for edge cases I hadn’t considered before, like payload length mismatches and memory alignment issues.

This exercise significantly leveled up my understanding of binary data handling and executable memory operations in a real-world context.

🔗 POC Repository

You can find the full code, for the Python POC here:

📂github.com/Yuriibe/poc_stegano_loader

And for the C++ Extractor here:

📂github.com/Yuriibe/StegaExtractor

🚧 What’s Next: Part 2 – DLL Search Order Hijacking

The next phase of this project will explore DLL Search Order Hijacking as a stealthier method of payload delivery. The plan is to:

Refactor the current C++ extractor into a DLL
Implement an exported function that automatically extracts and executes the hidden payload when the DLL is loaded
Use DLL hijacking techniques to place the malicious DLL in a location where a vulnerable application will load it instead of the legitimate one

This will allow me to test in-memory execution in a real-world process context—without dropping any obvious executables to disk, and without triggering UAC prompts. Part 2 will focus on loading the payload as part of a trusted process.

➡️ Read Part 2 – DLL Hijacking via explorer.exe
